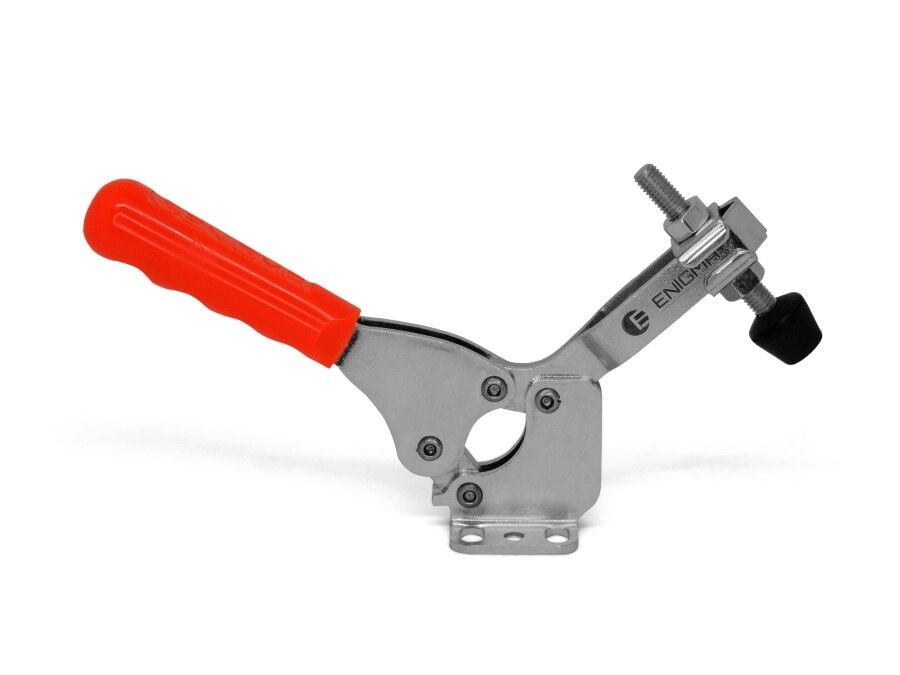

1263 Y Horizontal Base Clamp Horizontal Connection Element

Model:
1263 Y Horizontal Connection Element

Mounting Type:
Horizontal Base

General Information:
This product belongs to the group of quick connection elements known as horizontal connection elements. The handle locks in a horizontal position and offers a height advantage compared to vertical connection elements. It minimizes mold height. These clamps are referred to as Toggle Clamps, Seraj Clamps, Kenet Clamps, Horoz Vise, and Waagrechtspanner in the market. This group of clamps provides a holding capacity ranging from 900 N to 3500 N. During production, the clamping arm can open to a minimum of 90° for easy loading and unloading.

Features:

• Available in open-arm and bar-arm options.
• Two mounting options: horizontal and vertical.
• Made of steel sheet metal.
• Optionally available in black, which is non-reflective and suitable for measurement laboratories.

Technical Details:

• Maximum Holding Capacity (N): 2250
• Clamping Arm Length (mm): 47
• Clamping Arm Opening Angle: 93°
• Handle Opening Angle: 55°
• Stock Availability: Yes
• Standard Material: Steel
• Mounting Type: Vertical Base
• Operating Type: Horizontal
• Operating Conditions: Normal
• Welding Performance: Low
• Mounting Performance: Medium
• Control Fixtures Performance: Excellent
• Part Clamping Performance: Low
• Woodworking Performance: Excellent
• Cycle Time (sec): 2
• Product Type: Standard
• Weight (kg): 0.5
