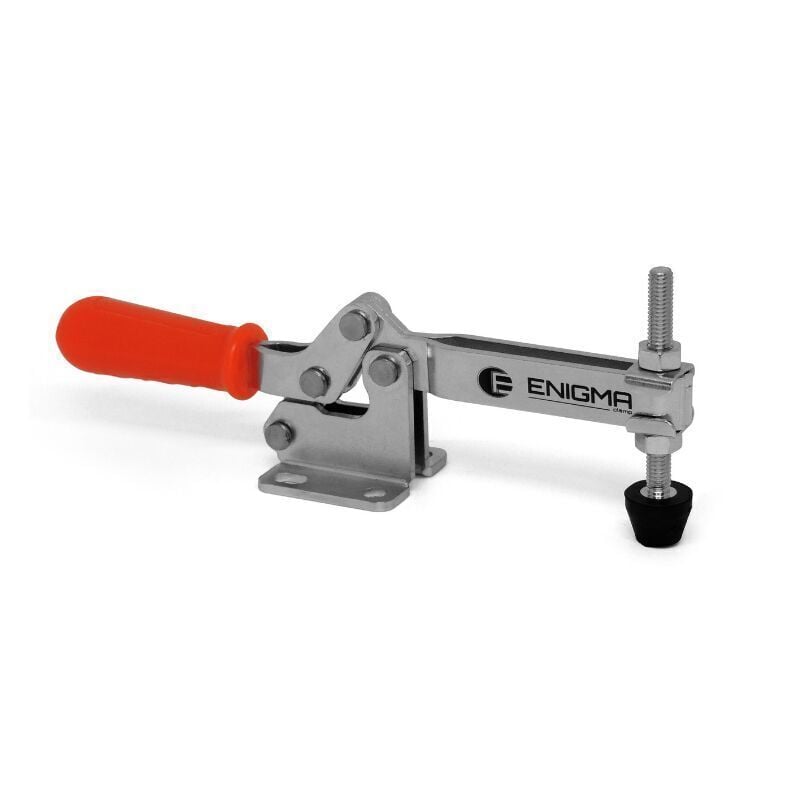

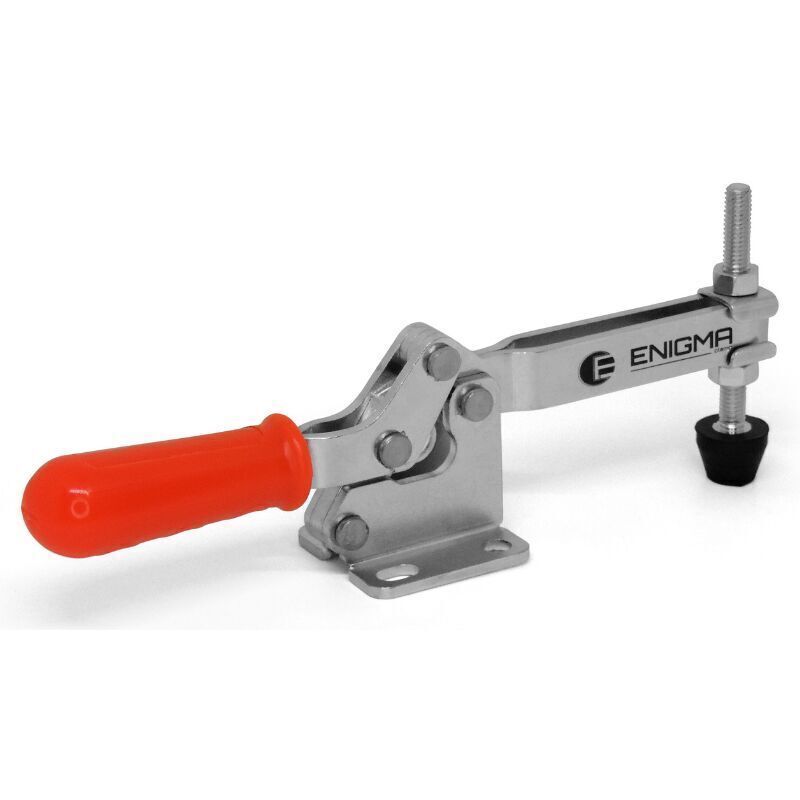

Model: Enigma 1234 Y – Horizontal Connection Element
Mounting Type: Horizontal Base
General Information:
This product belongs to the quick connection element group and is defined as a horizontal connection element. The lever locks in the horizontal position, giving it a height advantage over vertical clamps, minimizing mold height.
Also known on the market as Seraj, Kenet, Klemp, Clamp, Toggle Clamp, Horoz mengene, or Waagrechtspanner.
This group of clamps has a holding force ranging from 900 to 3500 N.
During production, the clamping arm opens at least 90° for easy loading/unloading.
Features:
Available with open-arm or flat-arm versions.
Two mounting types: horizontal and vertical.
Manufactured from steel sheet.
Optional black color available – non-reflective surface ideal for measurement labs.
Technical Specifications:
-
Max Holding Force: 3650 N
-
Clamping Arm Length: 72 mm
-
Clamping Arm Opening Angle: 67°
-
Handle Opening Angle: 70°
-
Material: Steel
-
Operation Type: Horizontal
-
Working Conditions: Normal
-
Welding Performance: High
-
Mounting Performance: High
-

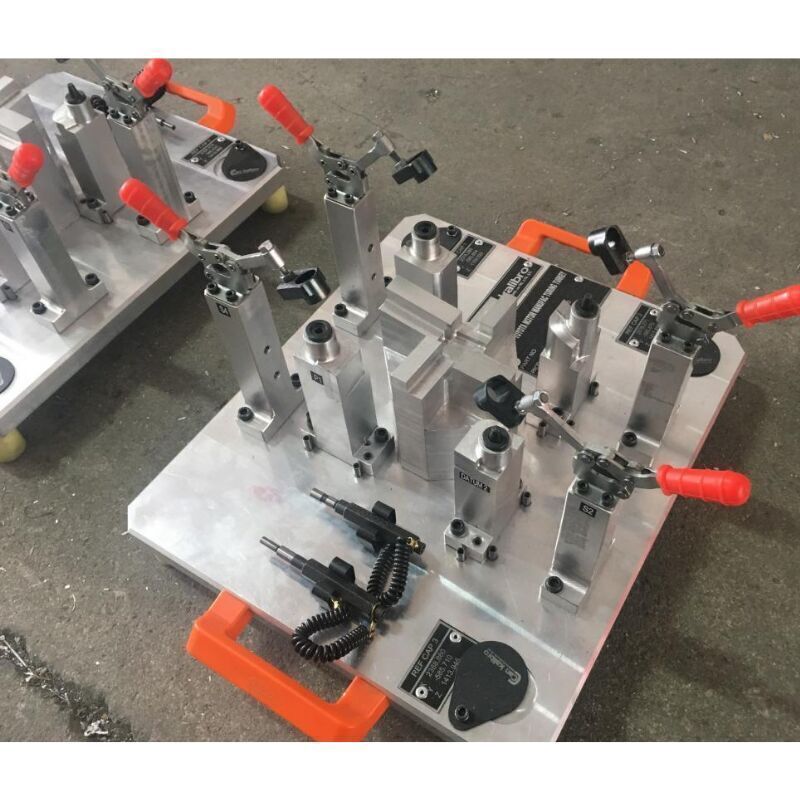

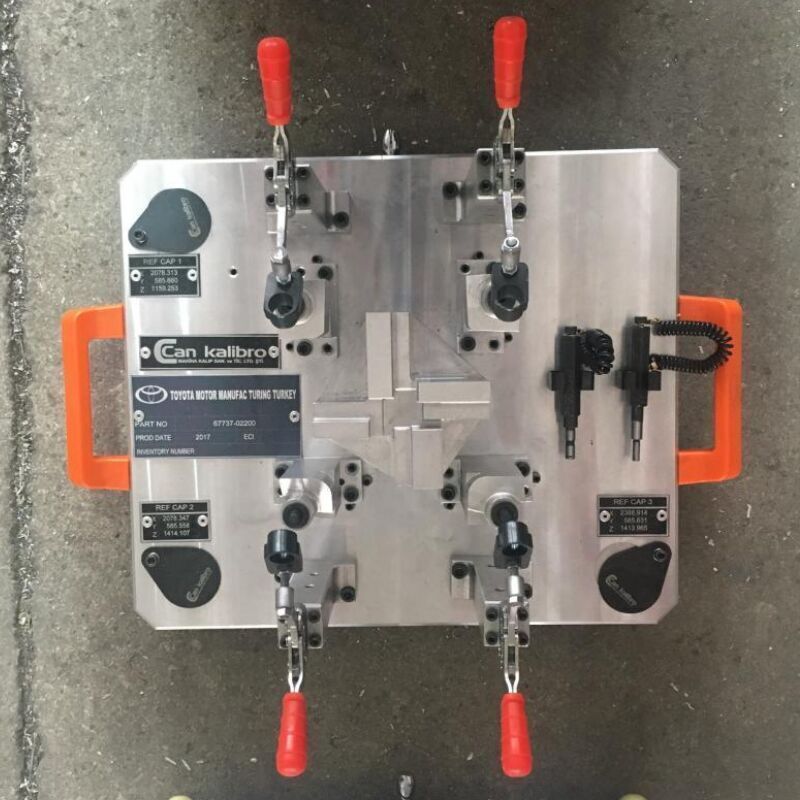

Control Fixture Performance: Excellent
-
Part Clamping Performance: Medium
-
Woodworking Performance: Excellent
-
Duty Cycle: 2 seconds
-
Weight: 0.62 kg
-
Availability: In stock
