Model: Enigma 1202 Y – Horizontal Connection Element
Mounting Type: Horizontal Base

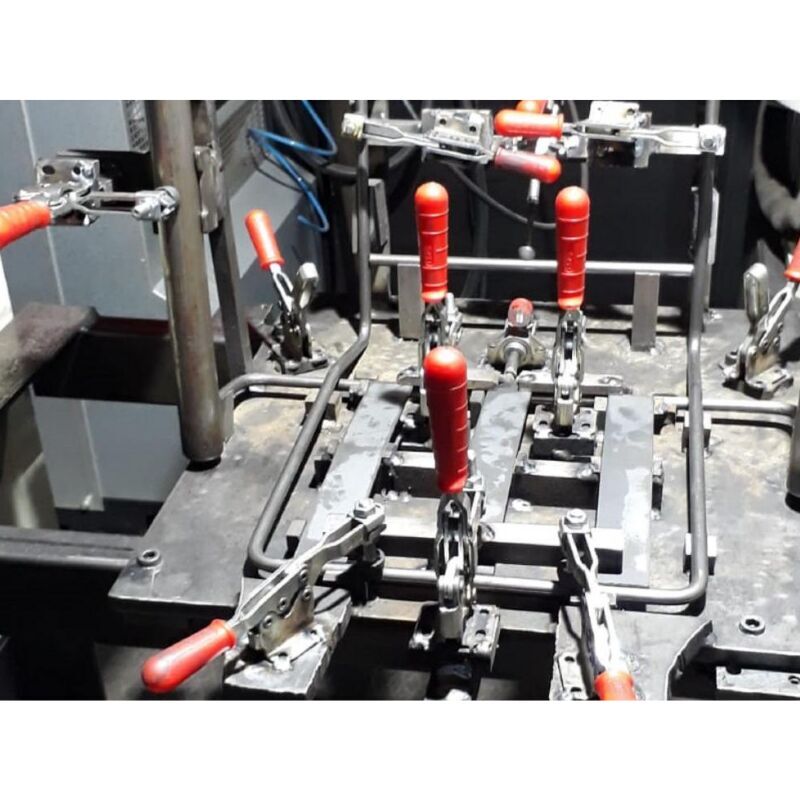

This product belongs to the quick connection elements group and is categorized as a horizontal connection element. The operating lever locks in the horizontal position, giving it an advantage in height over vertical clamps. It keeps the mold height at the lowest level possible.
Known on the market as Seraj, Kenet, Klemp, Clamp, Toggle Clamp, also called Horoz Mengene or Waagrechtspanner.
This group of clamps has a holding force ranging from 900 N to 3500 N.
To ease loading and unloading during production, the clamping arm opens at least 90°.
Features:
Available in open-arm and flat-arm versions.
Two mounting types: horizontal and vertical.
Manufactured from steel sheet.
Optional black version available with a non-reflective surface, ideal for use in measurement laboratories.
Technical Specifications:
-
Max Holding Force: 1100 N
-
Clamping Arm Length: 62 mm
-
Clamping Arm Opening Angle: 87°
-
Handle Opening Angle: 67°
-
Material: Steel
-
Operation Type: Horizontal
-
Working Conditions: Standard
-
Welding Performance: Low
-
Mounting Performance: Medium
-
Control Fixture Performance: Excellent
-
Part Clamping Performance: Low
-
Woodworking Performance: Excellent
-
Duty Cycle: 2 seconds
-
Weight: 0.16 kg
-
Availability: In Stock
