Model:

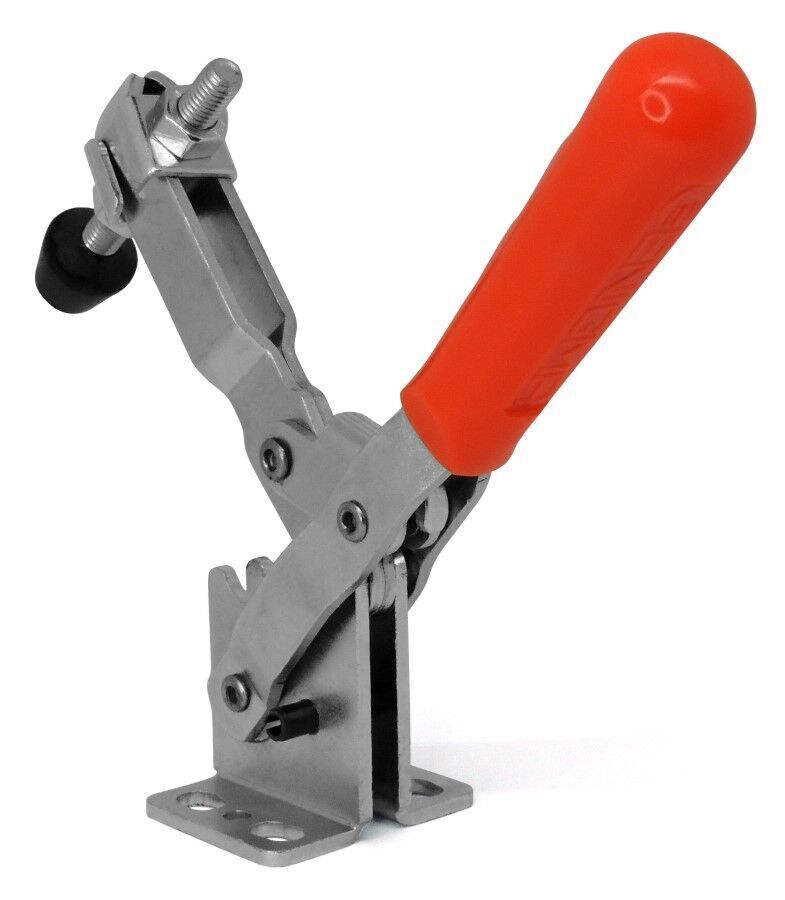

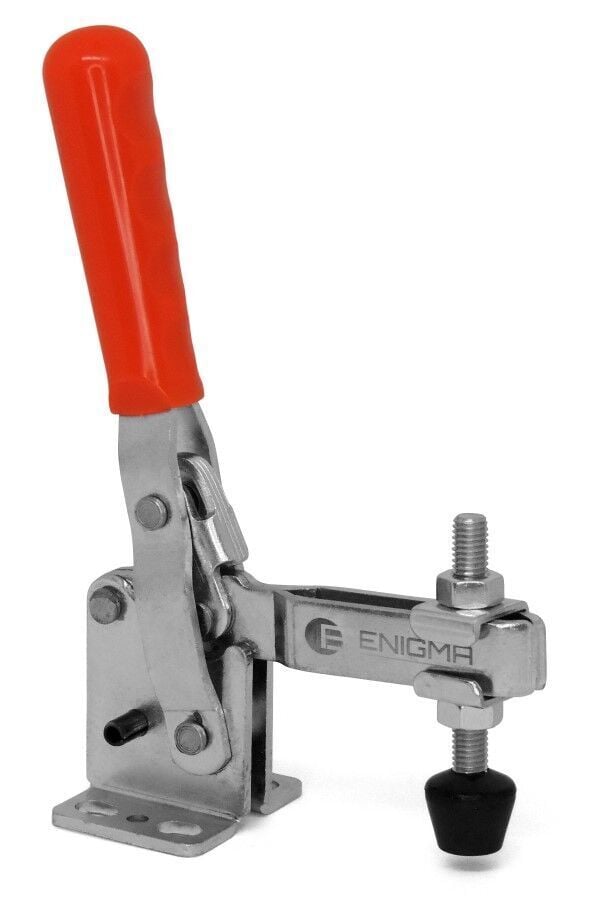

1106 Y Vertical Connector Element
Mounting Type:
Horizontal Base
General Information:
This product belongs to the group of vertical connector elements in the fast connector category. It is commonly known in the market under names such as Seraj, Kenet, Klemp, Clamp, and Toggle Clamp. It has a holding capacity ranging from 700 N to 5000 N. During production, the pressure lever can open at least 90 ° for easy loading and unloading. Some models can open up to 120 °.
Features:
There are open-arm and flat-arm options available.
Four different mounting types are available: horizontal, vertical, front base, and front vertical.
It is made of steel sheet metal.
It can be produced in black color upon request. The black models do not have reflective properties for measurement laboratories.
Technical Information:
Maximum Holding Capacity (N): 3300
Pressure Lever Length (mm): 80
Pressure Lever Opening Degree: 130
Movement Lever Opening Degree: 68
Available in Stock: Yes
Standard Material: Steel
Mounting Type: Horizontal Base
Working Type: Vertical
Working Conditions: Normal
Welding Performance: High
Mounting Performance: Excellent

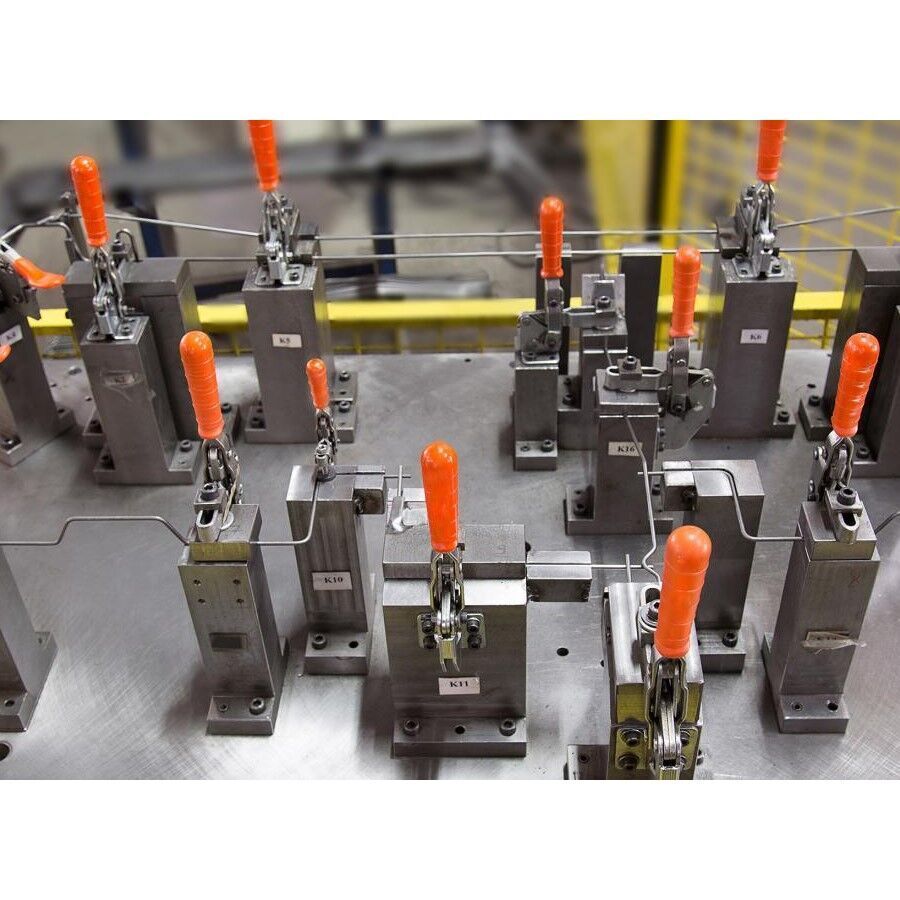

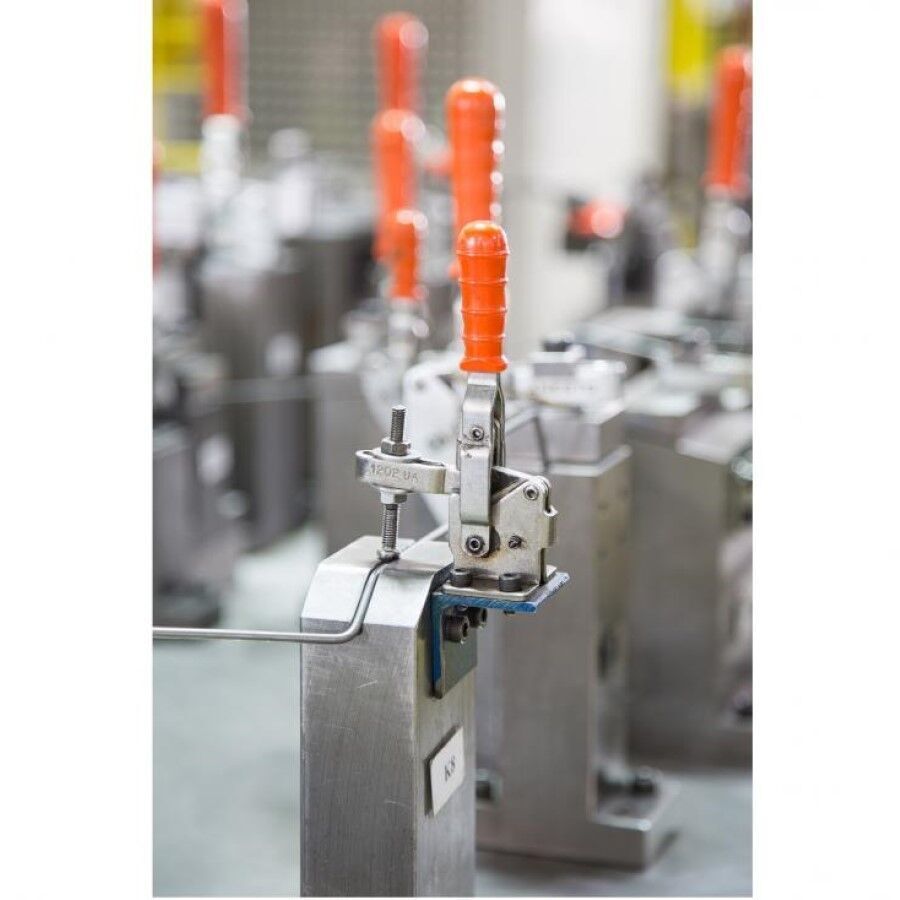

Control Fixtures Performance: Excellent

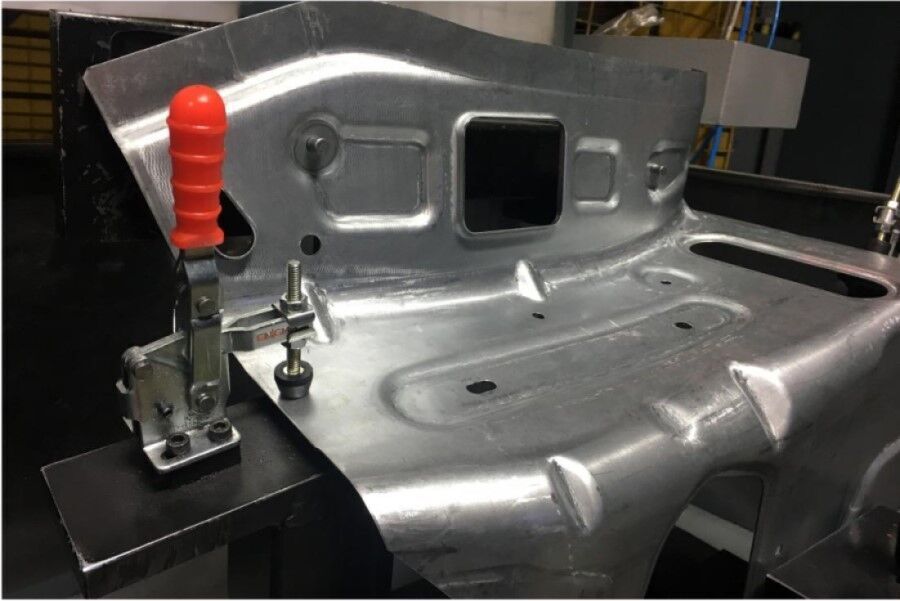

Part Clamping Performance: High
Woodworking Performance: Excellent
Duty Cycle (sec): 2
Product Type: Standard
Weight (kg): 0.70
