General Info:

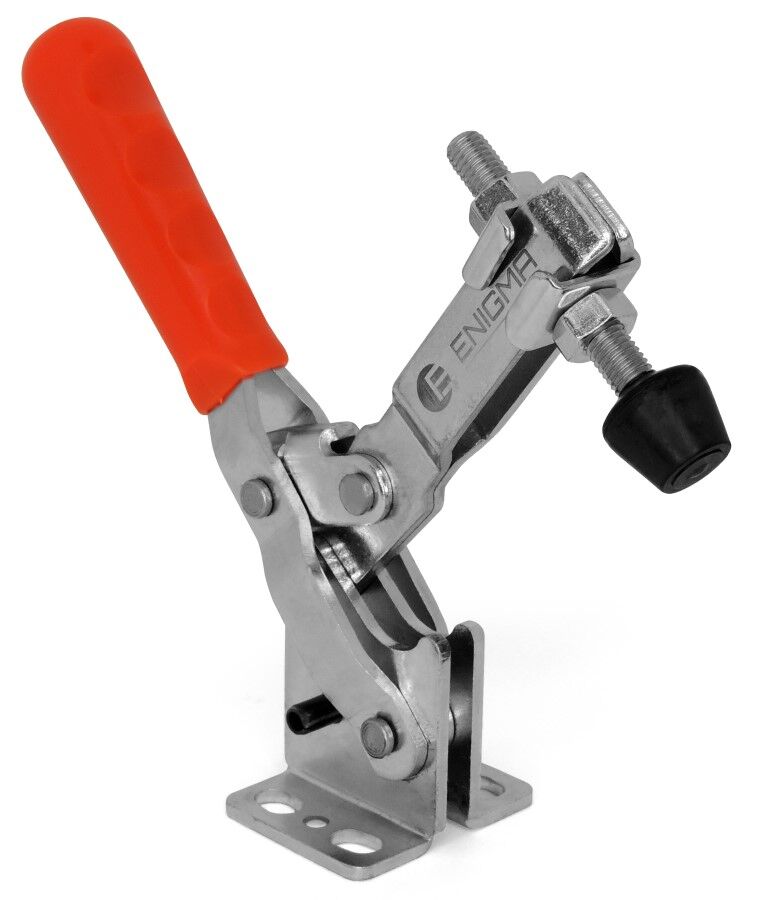

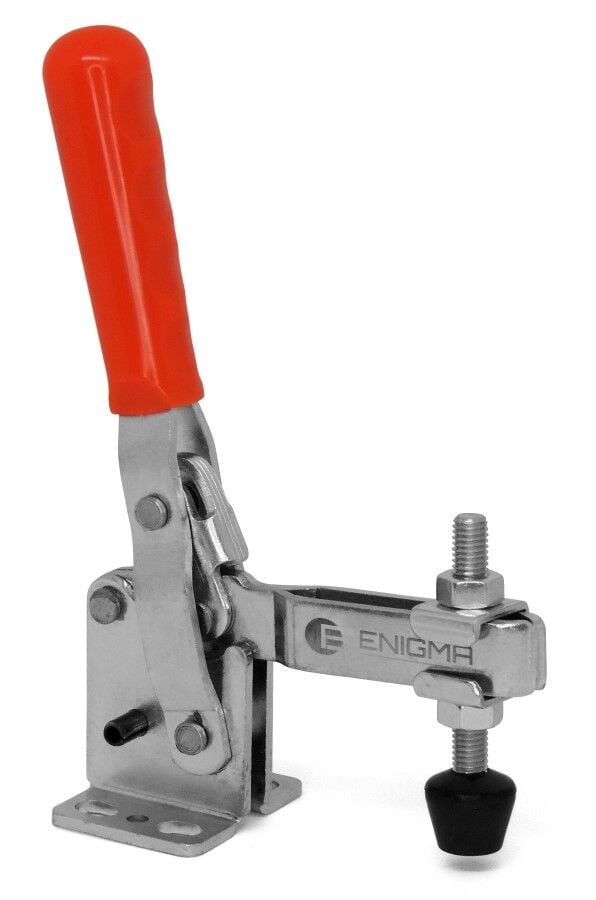

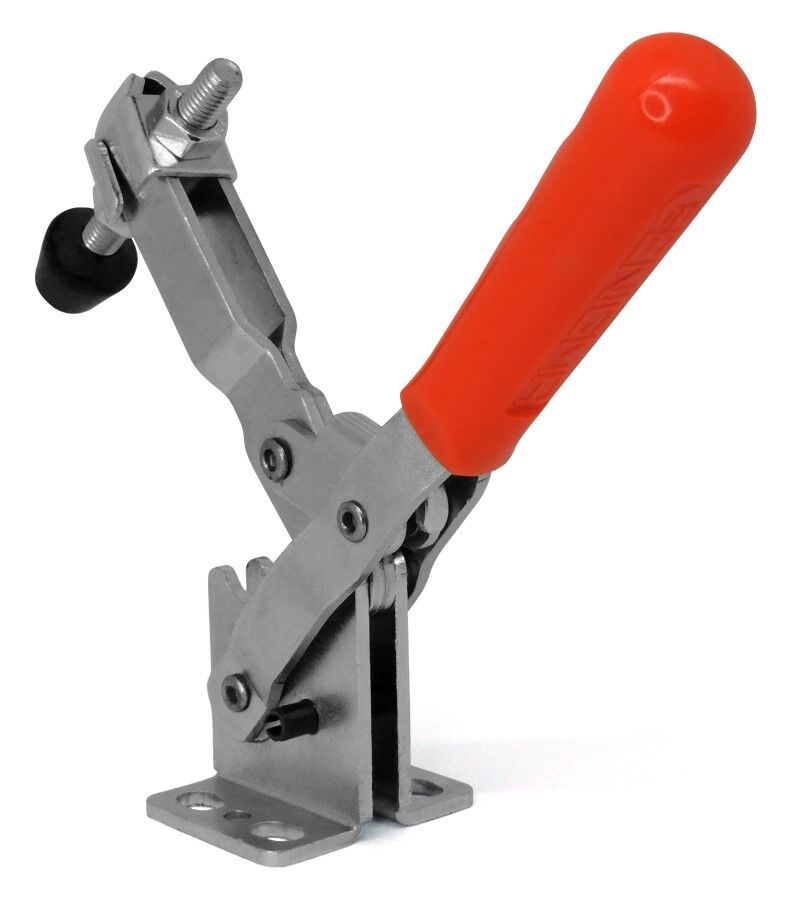

Part of Enigma’s quick clamp group, this product is a vertical mechanical connection device.
Known in the market as Seraj, Kenet, Klemp, or Clamp.
Holding capacity ranges between 700 N and 5000 N.
The clamping arm opens at least 90°, with models reaching 120° for easy loading/unloading.
Features:
-
Available in open arm and flat arm options
-
Four mounting types: horizontal base, vertical, frontal base, and frontal vertical
-
Manufactured from steel sheet
-
Optional black coating available
-
Non-reflective—ideal for measurement laboratories
Technical Specs:
-
Max Holding Capacity: 745 N
-
Clamping Arm Length: 34.5 mm
-
Clamping Arm Opening: 95°
-
Lever Opening Angle: 58°
-
Availability: In Stock
-
Material: Steel
-
Mounting Type: Horizontal Base
-
Operation Type: Vertical
-
Working Conditions: Normal
-
Welding Suitability: Low
-
Mounting Performance: High
-
Clamping Performance: Low
-
Woodworking Suitability: High
-
Duty Cycle: 2 sec
-
Weight: 0.14 kg
