Model: Enigma 1244 Y – Lockable Horizontal Connection Element
Mounting Type: Front Base
General Information:
This product belongs to the quick connection elements group and is defined as a horizontal connection accessory.
Known in the market as Seraj, Kenet, Klemp, Clamp, Quick Connection, and Toggle Clamp.
These clamps have a holding capacity ranging from 900 N to 7250 N.
For easy loading and unloading during manufacturing, the clamping arm opens at least 67°.
Features:
Available with open-arm and flat-arm options.
Four mounting options: horizontal, vertical, front base, and front-vertical base.
Manufactured from sheet steel; black, non-reflective versions are available for measurement labs.
Technical Specifications:
-
Max Holding Capacity: 3650 N
-
Clamping Arm Length: 72 mm
-
Clamping Arm Opening Angle: 67°
-
Operating Handle Opening Angle: 70°
-
Material: Steel
-
Operating Type: Horizontal
-
Working Conditions: Normal
-

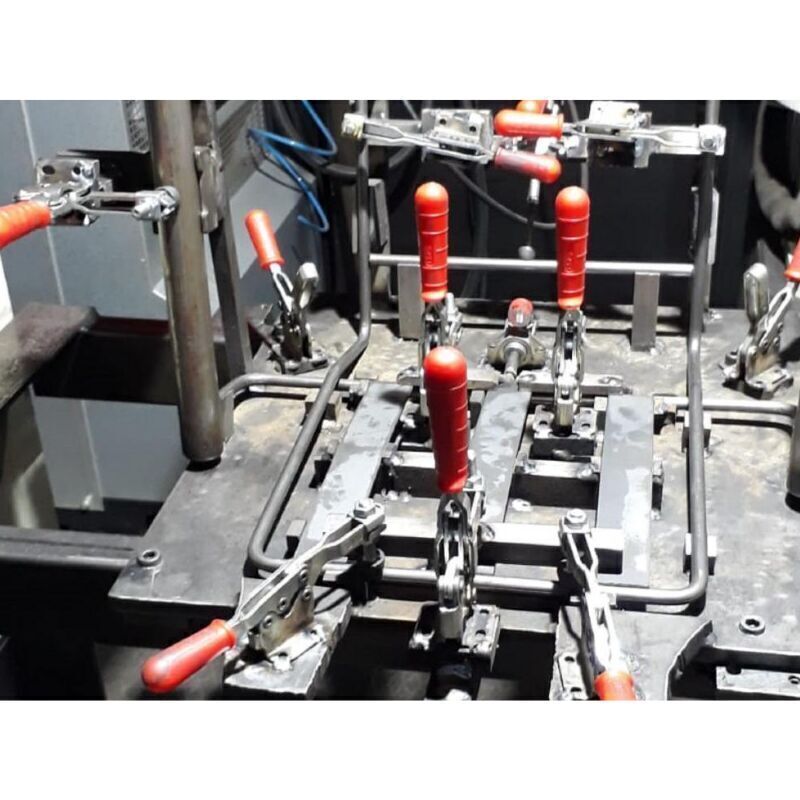

Welding Performance: High
-
Assembly Performance: Excellent
-

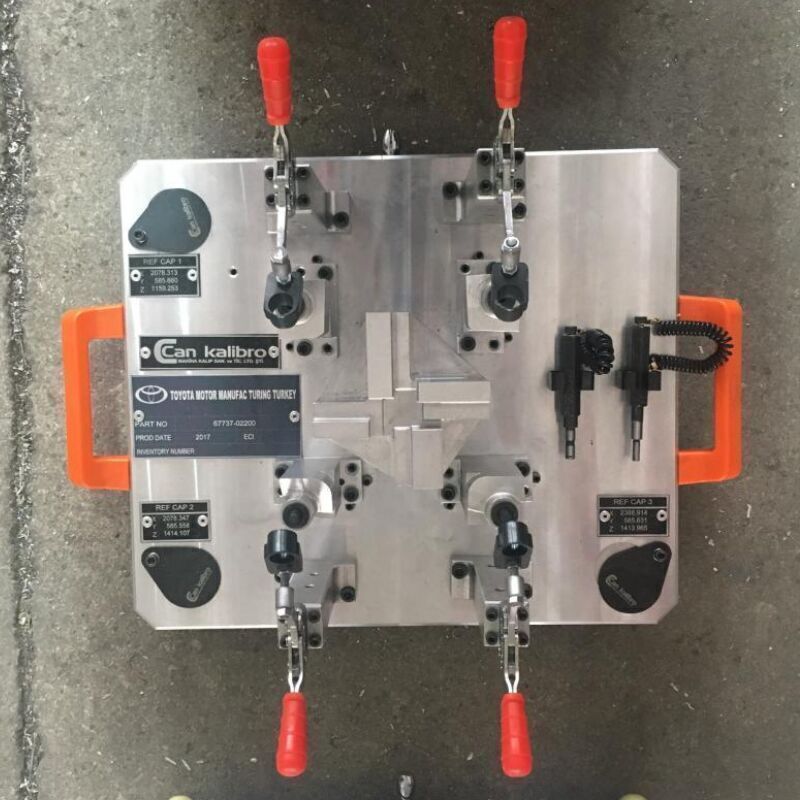

Control Fixture Performance: Excellent
-
Workpiece Clamping Performance: Medium
-
Woodworking Performance: Excellent
-
Duty Cycle: 2 seconds
-
Weight: 0.62 kg
-
In Stock: Yes
