Model:

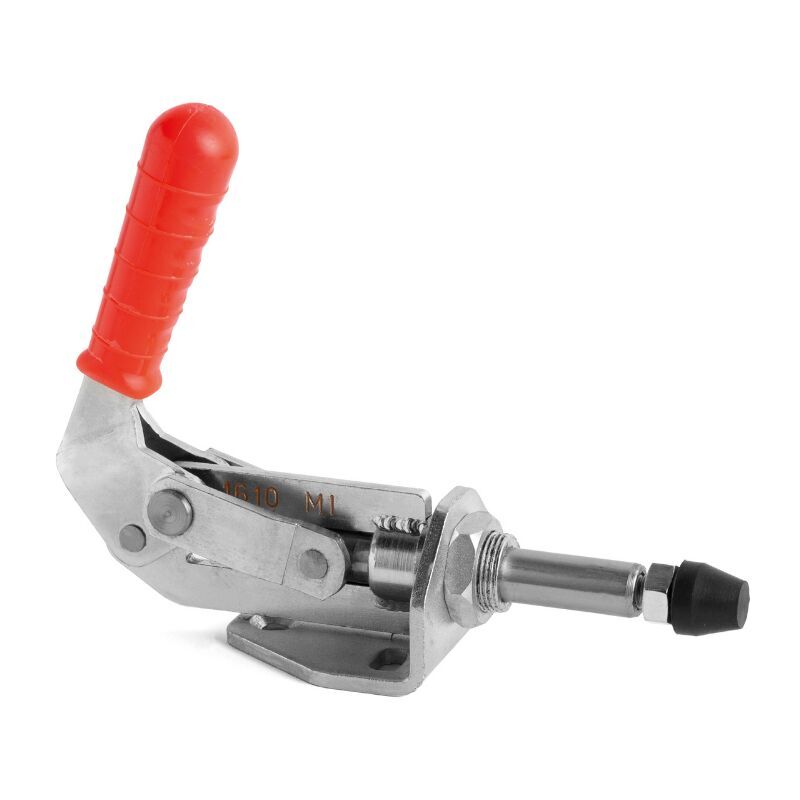

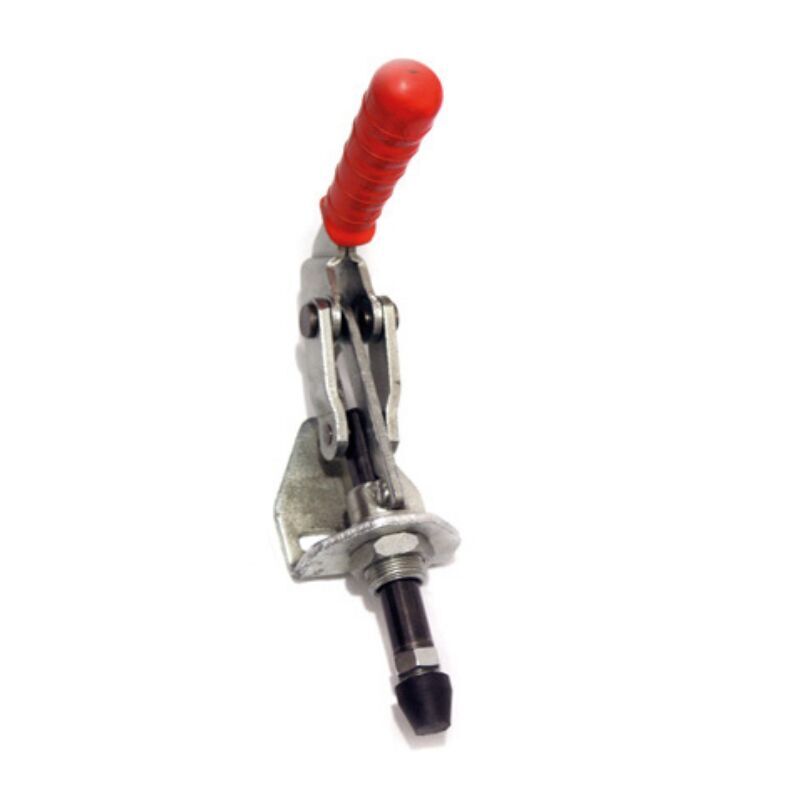

Push-Pull Connection Element 16816
Mounting Type:
Horizontal Base
General Information:
These products are part of the fast connection element group and are defined as push-pull connection elements. They have smooth linear motion and are used by locking in either push or pull positions. They are known in the market as Seraj, Kenet, Klemp, Clamp. These clamps have a holding capacity ranging from 800 N to 7000 N. During production, the stroke length of the pressure pad is between 28 mm and 48 mm for easy loading and unloading. The spindle diameters range from 8 mm to 16 mm.
Features:
Three mounting options are available: horizontal, vertical, and direct (no base).
Made of sheet steel and body.
Optional production in black color is available. Black models have a non-reflective feature, making them ideal for use in measurement laboratories.
Technical Information:
Maximum Holding Capacity (N): 975
Stroke Length (mm): 26
Movable Arm Opening Angle: 177°
Available in Stock: Yes
Standard Material: Steel
Mounting Type: Horizontal Base
Work Type: Smooth Linear Motion
Working Conditions: Normal
Welding Performance: Poor / Low
Mounting Performance: Excellent / High
Control Fixture Performance: Excellent / High
Part Clamping Performance: Poor / Low
Woodworking Performance: Excellent / High
Duty Cycle (Sec): 2
Product Type: Standard
Weight (kg): 0.15
