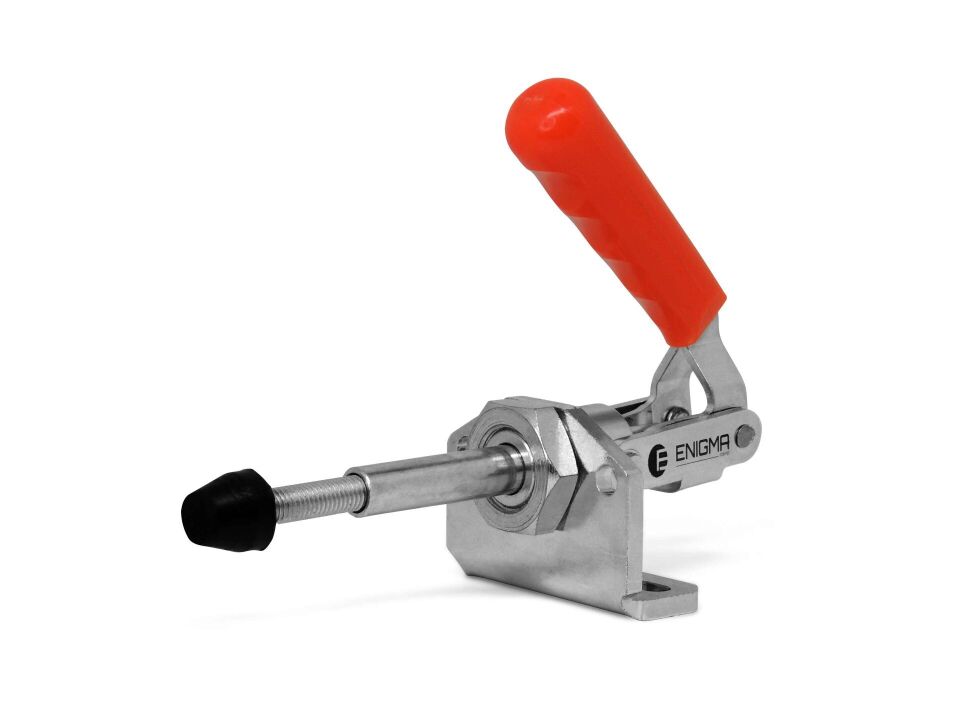

Push-Pull Clamp with Horizontal Base 16208 Y

Model:

Enigma 16208 Y Push-Pull Fastener​

Mounting Type:

Horizontal Base​

General Information:

Classified within the quick fasteners group as push-pull fasteners. Features smooth linear motion. Preferred in dusty and dirty working environments. Can be locked in either push or pull positions. During push (forward) and pull (backward) movements, a double-sided seal is used to protect the working path. Known in the market as Seraj, Kenet, Klemp, Clamp. This group of clamps has a holding capacity ranging from 800 N to 15000 N. To facilitate easy loading and unloading during production stages, the pressure pad stroke length ranges between 28 mm and 100 mm. Shaft diameters range from 8-22 mm. Push-pull clamps with stroke ranges varying between 30 mm and 100 mm are produced in different sizes according to needs.​

Features:

Three mounting options are available: horizontal, vertical, and without base (direct). Made from steel sheet plate and body. Optionally produced in black. Has non-reflective properties suitable for measurement laboratories.​

Technical Information:

• Maximum Holding Capacity (N): 4700​

• Stroke Length (mm): 54​

• Handle Opening Angle: 177 degrees​

• Standard Material: Steel Body​

• Mounting Type: Horizontal Base​

• Operation Type: Smooth Linear​

• Operating Conditions: Normal​

• Welding Performance: Excellent / High​

• Mounting Performance: Excellent / High​

• Control Fixtures Performance: Excellent / High​

• Workpiece Clamping Performance: Excellent / High​

• Woodworking Performance: Excellent / High​

• Duty Cycle (Sec): 2​

• Product Type: Standard​

• Weight (kg): 0.92 (920 Gr)​
