Model:

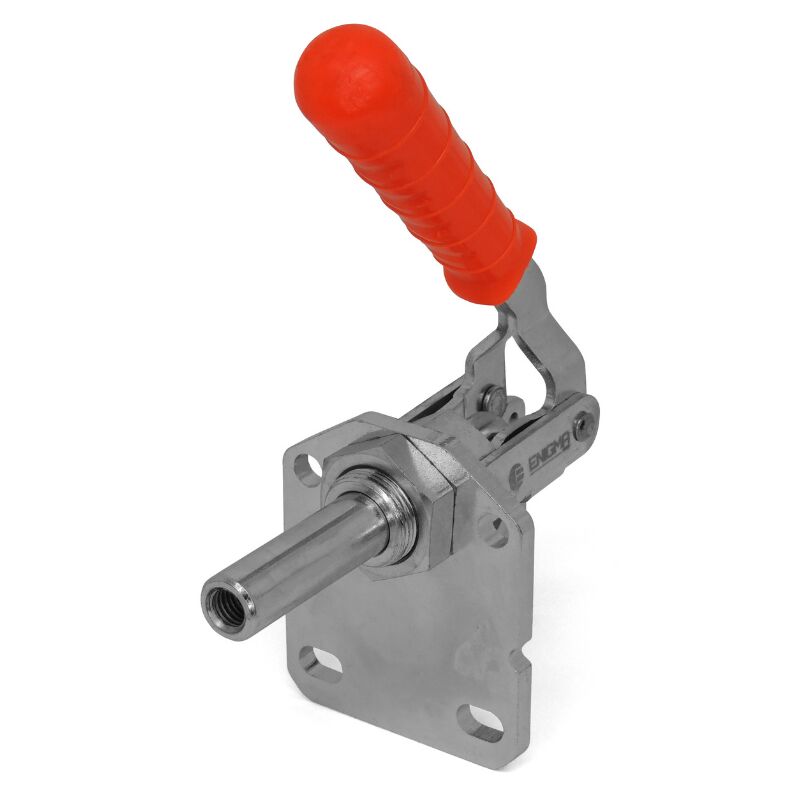

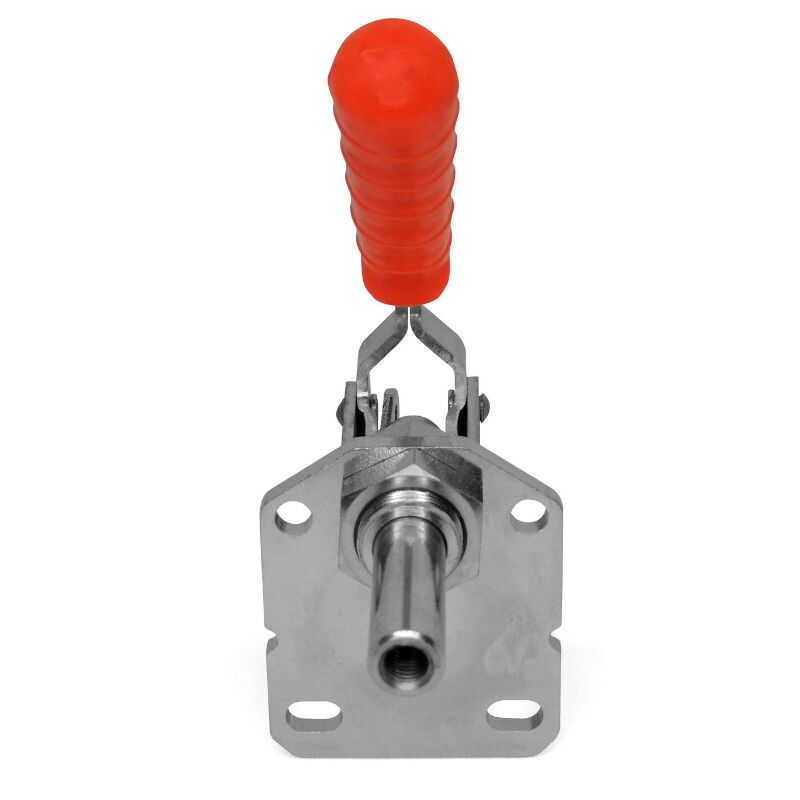

Enigma Push-Pull Vertical Base Clamp 16008 D
Mounting Type:
Vertical Base
General Information:
This product belongs to the push-pull connection element group, defined by its linear motion. It is ideal for dusty or cruff working environments. It can lock in both push (forward) and pull (backward) positions. A dual gasket is used to protect the work bed during the push and pull motions. This clamp has a holding capacity ranging from 800 N to 15000 N. The stroke length ranges from 28mm to 100mm, and the shaft diameter is between 8-22mm. The stroke range varies between 30mm to 100mm, and the clamps are produced in different sizes to suit various needs.
Specifications:
Available in three mounting types: horizontal, vertical, and direct. Made of steel sheet and body. Available in black as an optional color. Non-reflective for use in measurement laboratories.
Technical Details:
-
Maximum Holding Capacity (N): 975
-
Stroke Length (mm): 26
-
Motion Arm Opening Degree: 177
-
Material: Steel Body
-
Mounting Type: Vertical Base
-
Operation Type: Linear Motion
-
Duty Cycle (seconds): 2
