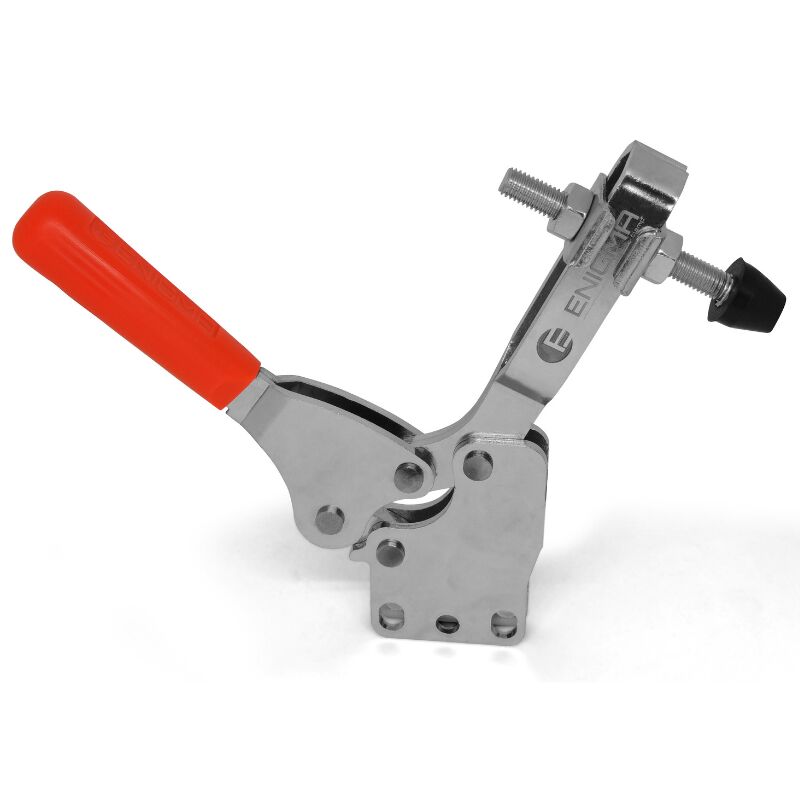

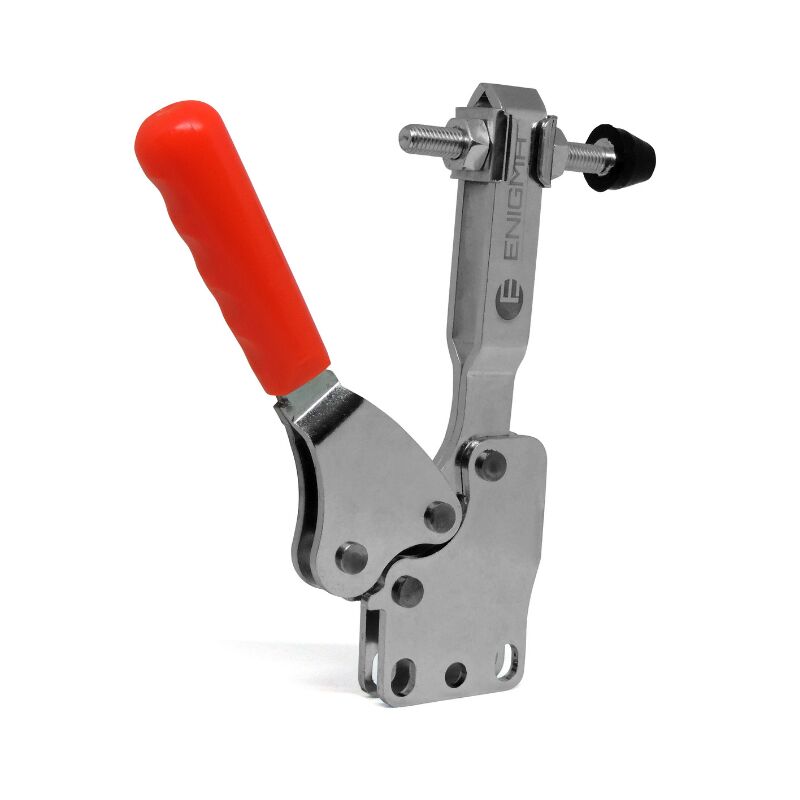

Model: Enigma 1261 D – Horizontal Connection Element
Mounting Type: Vertical Base
General Information:
This product belongs to the quick connection group and is defined as a horizontal connection element.
The handle locks in a horizontal position, offering a height advantage over vertical types.
It minimizes mold height.
It is known on the market as Seraj, Kenet, Klemp, Clamp, Toggle Clamp, Horoz vice, or Waagrechtspanner.
This group of clamps offers a holding force from 900 to 3500 N.
During production, the clamping arm opens at least 90° for easy loading and unloading.
Features:
Available in open-arm and flat-arm options.
Mounting options: horizontal or vertical.
Made of sheet steel.
Optional black models available – non-reflective, suitable for measurement labs.
Technical Specifications:
-
Max Holding Force: 7250 N
-
Clamping Arm Length: 102 mm
-
Clamping Arm Opening Angle: 68°
-
Handle Opening Angle: 65°
-
Material: Steel
-
Working Type: Horizontal
-
Working Conditions: Normal
-
Welding Performance: High
-
Mounting Performance: Excellent
-

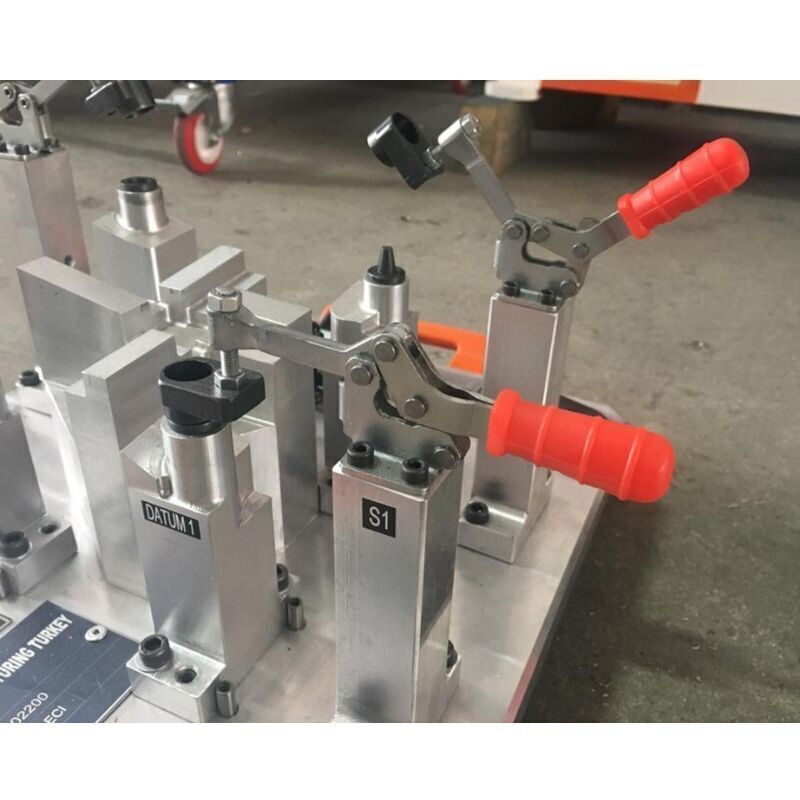

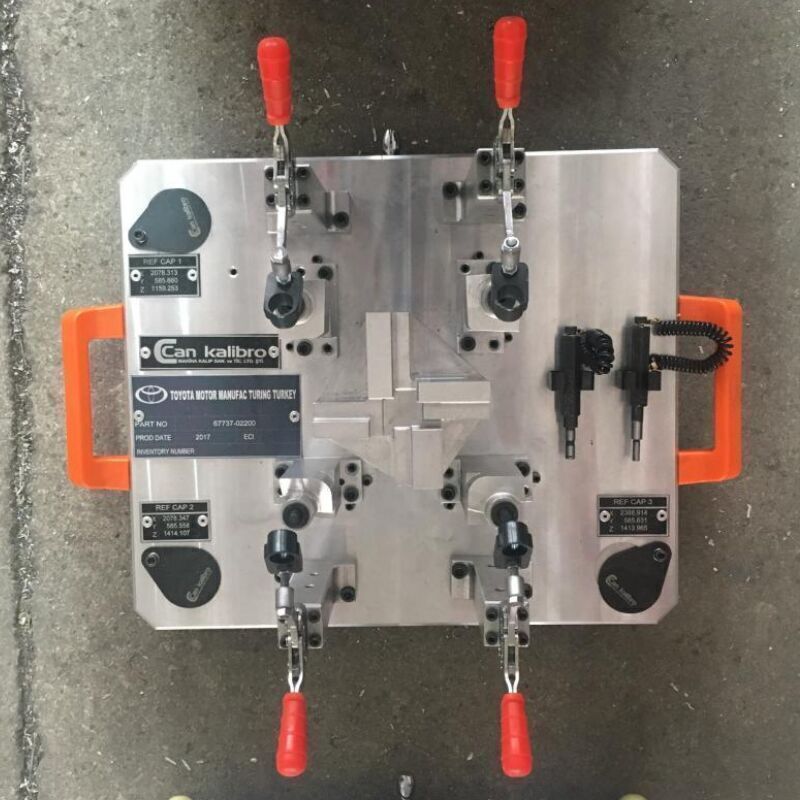

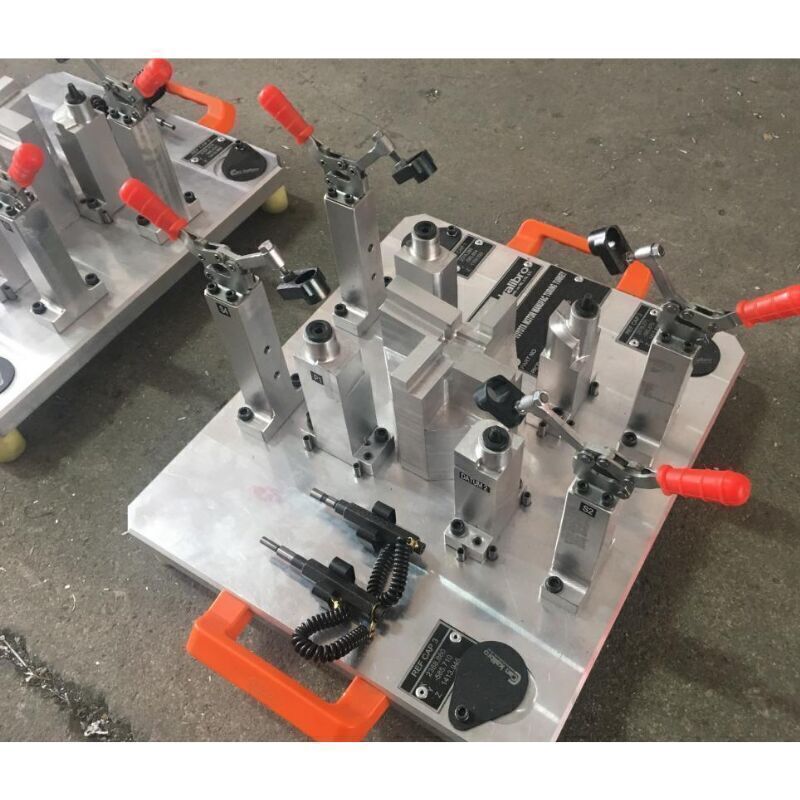

Control Fixtures Performance: Excellent
-
Part Clamping Performance: Excellent
-
Woodworking Performance: Excellent
-
Duty Cycle: 2 seconds
-
Weight: 1.36 kg
-
In Stock: Yes
