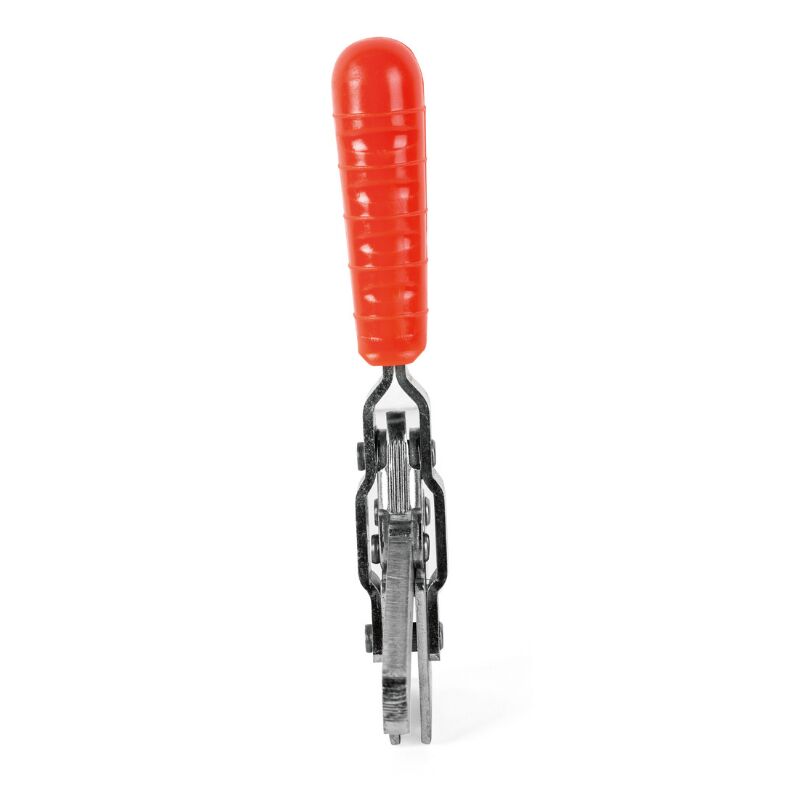

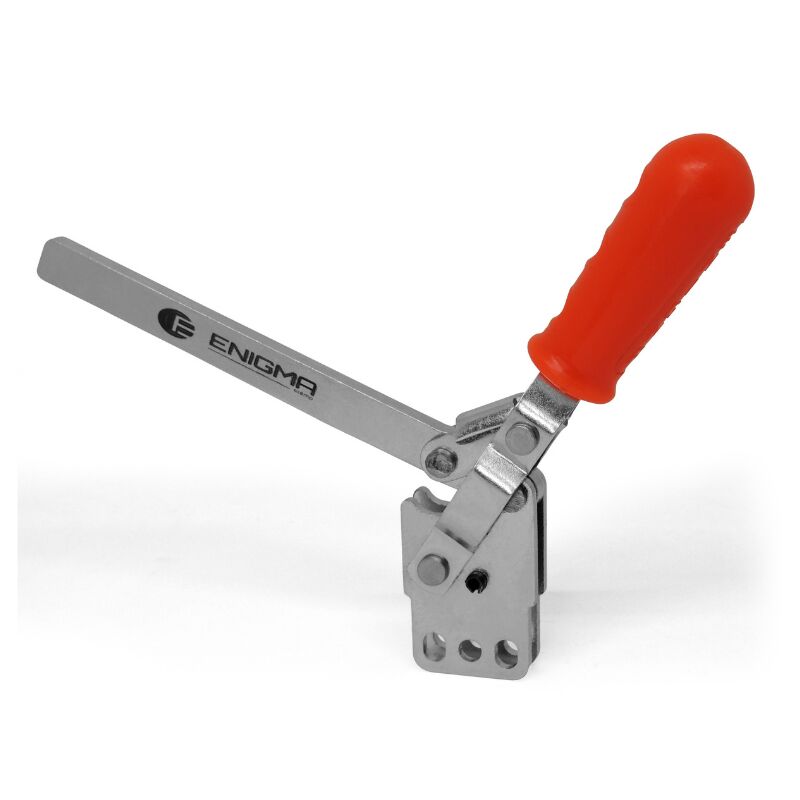

Model: Enigma 1101 D-L – Vertical Fastening Element with Vertical Base
Mounting Type: Vertical Base
General Info:
This product is part of the quick connection group and known in the market as Seraj, Kenet, Klemp, Clamp.
Designed for mechanical vertical fastening with a holding force between 700–5000 N.
The clamping arm opens at least 90° for ease of use; models with up to 120° are available.
Features:
-
Available in open-arm and flat-arm versions
-
Mounting options: horizontal, vertical, frontal base, frontal vertical
-
Made from steel sheet
-
Optional black, non-reflective coating for measurement labs
-
Ideal for industrial applications
Technical Specs:
-
Max Holding Force: 745 N
-
Clamping Arm Lengths: 73 / 123 / 173 mm
-
Clamping Arm Opening: 95°
-
Lever Opening: 58°
-
Material: Steel
-
Availability: Contact us
-
Duty Cycle: 2 sec
-
Weight: 0.16 kg
