Model:

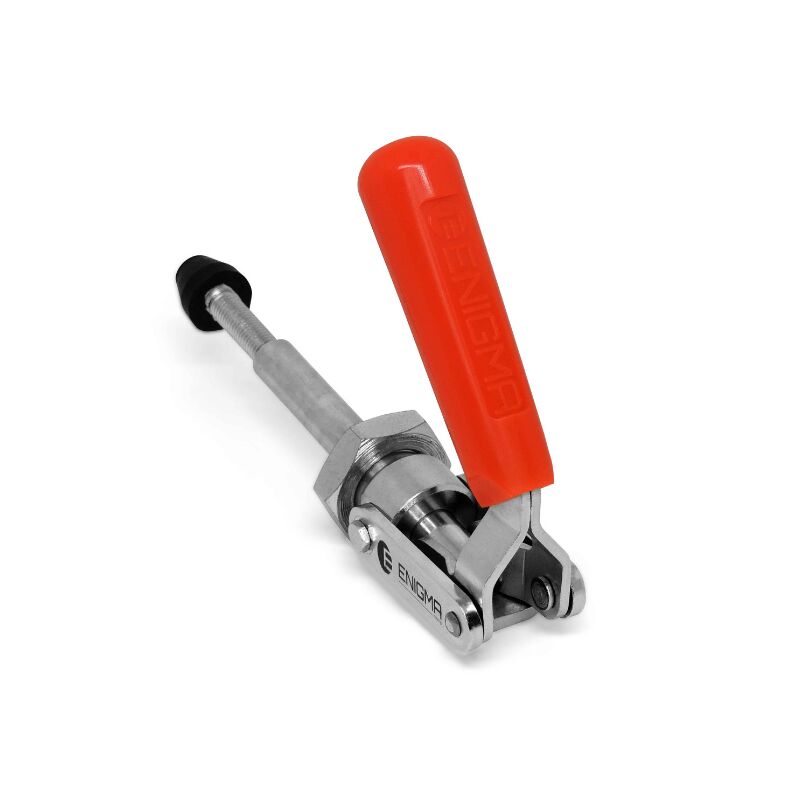

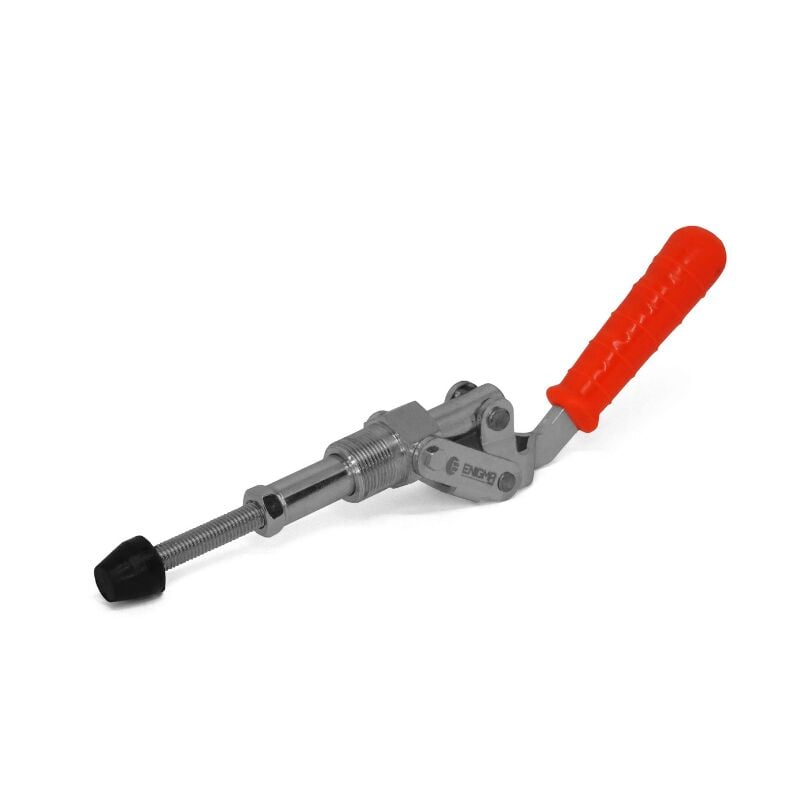

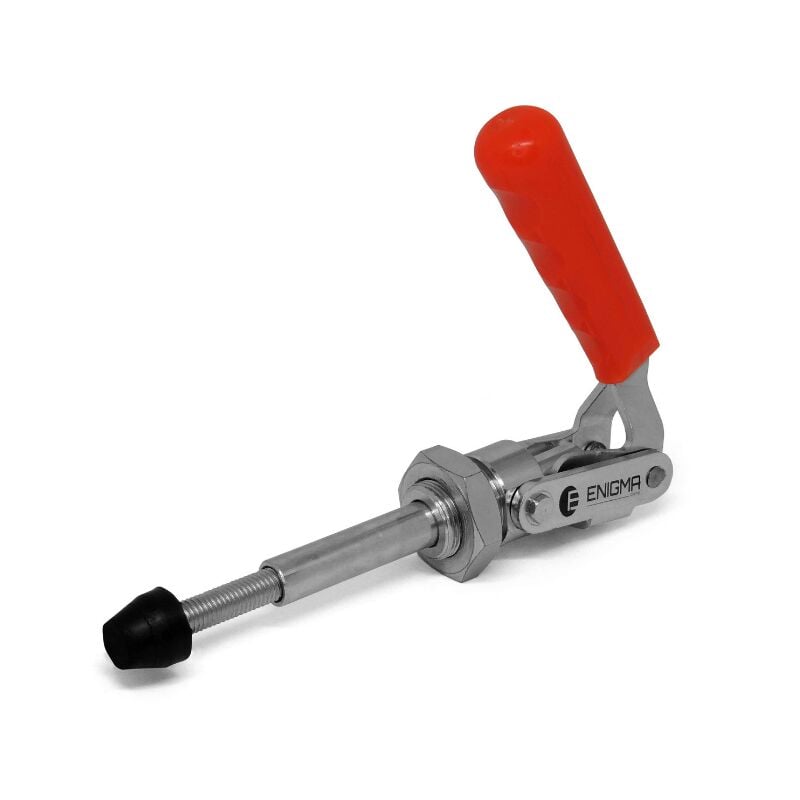

Enigma 16008 T Push-Pull Clamp
Mounting Type:
No Base
General Information:
This product is classified as a Push-Pull connector in the quick connection elements group, featuring linear motion. It is preferred in dusty, rough working environments. It can be locked in the push (forward) or pull (backward) position. During the push (forward) and pull (backward) movements, the working bed is protected using double seals. It is marketed under the names Seraj, Kenet, Klemp, Clamp. This clamp group has a holding capacity from 800 N to 15000 N. The stroke length ranges from 28 mm to 100 mm, with shaft diameters ranging from 8-22 mm. Push-pull clamps with stroke ranges from 30 mm to 100 mm are produced in various sizes based on demand.
Specifications:
There are three mounting options: horizontal, vertical, and direct (no base). Made from steel sheet and body. Available in black as an option. It features a non-reflective property for measurement laboratories.
Made from steel. It can also be produced in black. It has non-reflective properties for measurement laboratories. Preferred for heavy-duty applications, part fastening, and welding fixtures. Due to its high durability, it is ideal for tasks requiring high force.
Technical Data:
Maximum Holding Capacity (N): 975
Stroke Length (mm): 26
Movement Arm Opening Degree: 177
Stock Status: Contact us
Standard Material: Steel Body
Mounting Type: No Base
Work Type: Linear Movement
Operating Conditions: Normal
Welding Performance: Excellent / High
Mounting Performance: Excellent / High
Fixture Control Performance: Excellent / High
Part Clamping Performance: Excellent / High
Woodworking Performance: Excellent / High
Duty Cycle (sec): 2
Product Type: Standard
Weight (kg): 0.13 (130 g)
